Google Code Playground - Path Traversal

Published on:

There’s already been some traffic here so let me describe one of my earliest bugs I’ve reported to Google Security Team.

Last August, I had a brief look at Google Code Playground site. I was looking for some client side issues like XSS or CSRF but my attention was caught by the copyright notice on every subpage.

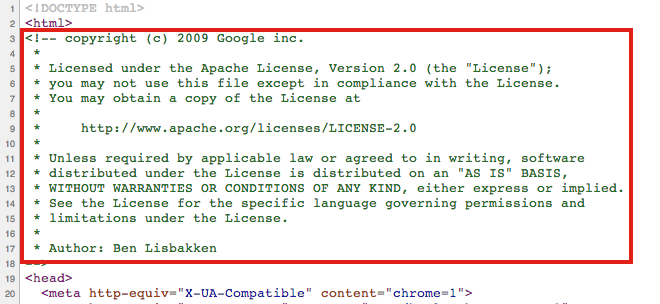

Screenshot showing a snippet of the Apache License

As it’s licensed on Apache License, which is an open source one, perhaps it’s possible to find some sources? My intuition proved correct and so I started to examine of what I could find.

Have a look at this file

path = self.request.path
path = path[1:] # 1.
path = path.replace('apis/ajax/playground/', '') # 2.
# (...)
path = os.path.join(os.path.dirname(__file__), path) #3.

self.response.out.write(template.render(path, self.template_values))

Can you spot an issue here? :) Suppose the request path is /apis/ajax/playground/samples/test.html and the OS path is /base/data/home/apps/s~app/1.34/. Let’s examine what the script will actually do:

  1. Strip the first character from request path. Result: apis/ajax/playground/samples/test.html.
  2. Delete all occurences of apis/ajax/playground/. So apis/ajax/playground/samples/test.html => samples/test.html.
  3. Concatenate the path with OS path. Result: /base/data/home/apps/s~app/1.34/samples/test.html.
  4. Write contents of the file in the output.

So far so good. But what’s gonna happen when we’ll issue a request with path /apis/ajax/playground/samples/..apis/ajax/playground// Let’s find out.

  1. Strip the first character. apis/ajax/playground/samples/..apis/ajax/playground//
  2. Delete all occurences of apis/ajax/playground. apis/ajax/playground/samples/..apis/ajax/playground// => samples/../ Oops! Bare double dot spotted!
  3. Concatenate it with OS path. /base/data/home/apps/s~app/1.34/samples/../, while the effective path is /base/data/home/apps/s~app/1.34/
  4. Now we can read output in http response.

Unfortunately I have no screenshots but I hope you get the idea.

The issue was reported to Google on 22nd August 2013 and was fixed within the same day. You can verify that by checking the diff.

Big thanks to Google Security Team for running their bounty program, which is a great way to enhance one’s skills.
